Australia Specifications
| Dimensions | W 812mm x D 725mm x H 795mm |
| Tray Capacity |
5 GN 1/1 tray capacity 5 600mm x 400mm tray capacity |
| Tray Spacing | 70mm |
| Power | 400-415V, 50Hz, 3P+N+E, 7.5kW, 11A/ph or 230-240V, 50Hz, 1P+N+E, 7.5kW, 32A |
| Cordset Fitted | No cordset supplied |
| Fan/Heating | Auto-reversing direction fan |
| Controls |
Electro-mechanical controls to set time, temperature and operation mode Temperature range 50-260C Manual timer range up to 120 minutes Selector for convection, steam and combi mode Door open rapid cool down function Manual chamber venting LED chamber lighting |
| Accessories |
SK40A oven standMultipoint core temperature probeCEH extraction hood with air-cooled condenserCSK405 stacking kit (5 tray on 5 tray)CSS405 stacking kit stand |
New Zealand Specifications
| Dimensions | W 812mm x D 725mm x H 795mm |
| Tray Capacity |
5 GN 1/1 tray capacity 5 600mm x 400mm tray capacity |
| Tray Spacing | 70mm |
| Power | 400-415V, 50Hz, 3P+N+E, 7.5kW, 11A/ph or 230-240V, 50Hz, 1P+N+E, 7.5kW, 32A |
| Cordset Fitted | No cordset supplied |
| Fan/Heating | Auto-reversing direction fan |
| Controls |
Electro-mechanical controls to set time, temperature and operation mode Temperature range 50-260C Manual timer range up to 120 minutes Selector for convection, steam and combi mode Door open rapid cool down function Manual chamber venting LED chamber lighting |
| Accessories |
SK40A oven standMultipoint core temperature probeCEH extraction hood with air-cooled condenserCSK405 stacking kit (5 tray on 5 tray)CSS405 stacking kit stand |
International Specifications
| Dimensions | W 812mm x D 725mm x H 795mm |
| Tray Capacity |
5 GN 1/1 tray capacity 5 600mm x 400mm tray capacity |
| Tray Spacing | 70mm |
| Power | 400-415V, 50Hz, 3P+N+E, 7.5kW, 11A/ph or 230-240V, 50Hz, 1P+N+E, 7.5kW, 32A |
| Cordset Fitted | No cordset supplied |
| Fan/Heating | Auto-reversing direction fan |
| Controls |
Electro-mechanical controls to set time, temperature and operation mode Temperature range 50-260C Manual timer range up to 120 minutes Selector for convection, steam and combi mode Door open rapid cool down function Manual chamber venting LED chamber lighting |
| Accessories |
SK40A oven standMultipoint core temperature probeCEH extraction hood with air-cooled condenserCSK405 stacking kit (5 tray on 5 tray)CSS405 stacking kit stand |
United Kingdom Specifications
| Dimensions | W 812mm x D 725mm x H 795mm |
| Tray Capacity |
5 GN 1/1 tray capacity 5 600mm x 400mm tray capacity |
| Tray Spacing | 70mm |
| Power | 400-415V, 50Hz, 3P+N+E, 7.5kW, 11A/ph or 230-240V, 50Hz, 1P+N+E, 7.5kW, 32A |
| Cordset Fitted | No cordset supplied |
| Fan/Heating | Auto-reversing direction fan |
| Controls |
Electro-mechanical controls to set time, temperature and operation mode Temperature range 50-260C Manual timer range up to 120 minutes Selector for convection, steam and combi mode Door open rapid cool down function Manual chamber venting LED chamber lighting |
| Accessories |
SK40A oven standMultipoint core temperature probeCEH extraction hood with air-cooled condenserCSK405 stacking kit (5 tray on 5 tray)CSS405 stacking kit stand |
United States Specifications
| Dimensions | W 32" x D 28-5/8" x H 31-3/8" |
| Tray Capacity |
5 full size steam pan capacity |
| Tray Spacing | 2-3/4" |
| Power | 208V, 60Hz, 3-phase, 7.5kW, 21A/ph, or208V, 60Hz, 1-phase, 7.5kW, 36A or240V, 60Hz, 3-phase, 7.5kW, 18A/ph, or240V, 60Hz, 1-phase, 7.5kW, 32A |
| Cordset Fitted | No cordset supplied |
| Fan/Heating | Auto-reversing direction fan |
| Controls |
Electro-mechanical controls to set time, temperature and operation mode Temperature range 122-500F Manual timer range up to 120 minutes Selector for convection, steam and combi mode Door open rapid cool down function Manual chamber venting LED chamber lighting |
| Accessories |
SK40A oven standCSK405 stacking kit (5 tray on 5 tray)CSS405 stacking kit stand |
Canada Specifications
| Dimensions | W 32" x D 28-5/8" x H 31-3/8" |
| Tray Capacity |
5 full size steam pan capacity |
| Tray Spacing | 2-3/4" |
| Power | 1-Phase and 3-Phase connection possible.Specify voltage when ordering.208V, 60Hz, 3-phase, 7.5kW, 21A/ph, or208V, 60Hz, 1-phase, 7.5kW, 36A240V, 60Hz, 3-phase, 7.5kW, 18A/ph, or240V, 60Hz, 1-phase, 7.5kW, 32A |
| Cordset Fitted | No cordset supplied |
| Fan/Heating | Auto-reversing direction fan |
| Controls |
Electro-mechanical controls to set time, temperature and operation mode Temperature range 122-500F Manual timer range up to 120 minutes Selector for convection, steam and combi mode Door open rapid cool down function Manual chamber venting LED chamber lighting |
| Accessories |
SK40A oven standCSK405 stacking kit (5 tray on 5 tray)CSS405 stacking kit stand |

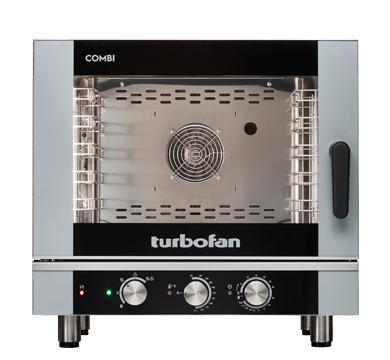

5 Tray Half Size Manual Electric Combi Oven
EC40M5 , 40 Series
The Turbofan E40M5 combi incorporates straightforward simplicity with manual controls in a combi oven. With five GN 1/1 tray capacity within its compact 812mm / 32″ wide footprint, place it in the open kitchen or tuck it away in the bar area and take your kitchen to a new degree of productivity. With easy to use electromechanical controls with controller knobs to set cooking mode between convection, steam or combination mode, time and temperature. Fitted with a hand shower providing a durable and effective quick clean tool.
